 Post subject: Re: Norms 75 luv build
PostPosted: Thu Oct 27, 2011 10:20 pm
Offline
Addicted to LUV
User avatar

Joined: Thu Jan 21, 2010 11:47 pm
Posts: 2944
Location: Vancouver, Washington
kellytye wrote:
thank you hotrod80 . thatas the nicest comment weve got on this littel luv . thanks again

i totally agree!
i wish luvs came factory that way.. power steering... horsepower to go with the stout chassis....

_________________
Luvless :(
1980 Mikado-Sold.

1993 Lexus SC400 my Daily
2004 Yamaha WR250F my new love in life
2016 Toyota Camry my girls ride


Top
 Profile
Reply with quote
 Post subject: Re: Norms 75 luv build
PostPosted: Thu Oct 27, 2011 11:22 pm
Offline
Addicted to LUV

Joined: Fri Jul 01, 2005 9:41 pm
Posts: 6289
Location: Camarillo, CA
I find it funny how us un trained guys can figure out how to make their products better and more useful. And are the grease monkeys they build them for

_________________
Certified pilots, looking down on people since 1903.


Top
 Profile
Reply with quote
 Post subject: Re: Norms 75 luv build
PostPosted: Fri Oct 28, 2011 12:16 am
Offline
LUVTruck.com Guru
User avatar

Joined: Mon Dec 13, 2010 8:50 pm
Posts: 158
Location: cental point oregon
i would have to say that i agree with you guys . it takes a AMERICANS to do it right . the way we were going to go is with the 90 tropper 4x4 stearing and just change the tie rod ends , but the center link sits on top of the pitmen arm and it got into the oilpan . Im pretty sure that with the stock engine it well bolt right in with tie rod ends [ napa # 269-2918 ] , or for sure it well fit in the 4x4s . the frame rails on the 90 tropper at the front of the chassie are the same as all the luv frames [me4surment wise , so i would say that all the troppers are the same atleast up till 90 . you must use the idaler arm as well . OR just get the box and cut the hub off the piitmen arm and weld the old luv pitmen arm on . get it done by a pro , this is what keeps you going in right die-rection , have it tig welded and you wont have any problems. hope this helps


Top
 Profile
Reply with quote
 Post subject: Re: Norms 75 luv build
PostPosted: Sat Oct 29, 2011 5:54 pm
Offline
LUVTruck.com Guru
User avatar

Joined: Mon Dec 13, 2010 8:50 pm
Posts: 158
Location: cental point oregon

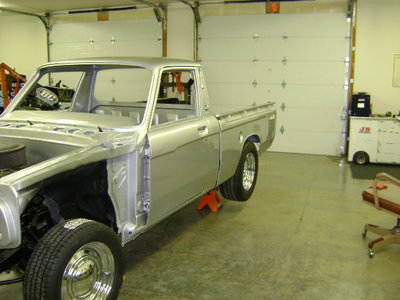

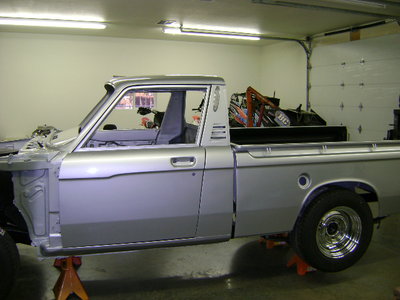

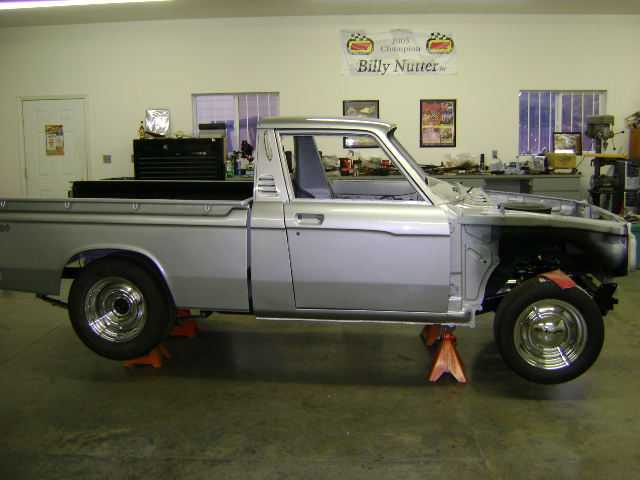

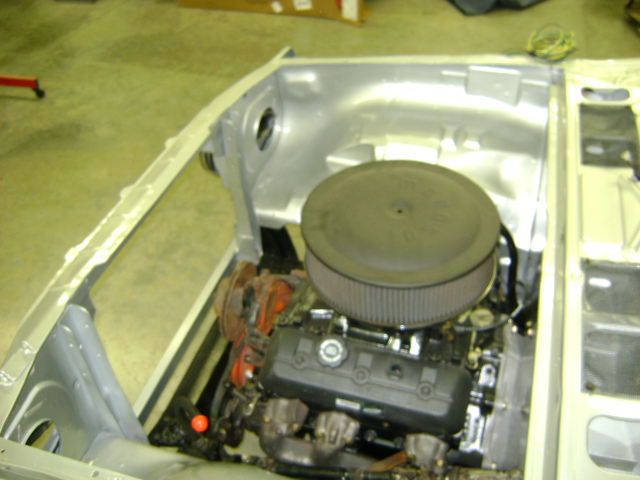

doors on and ready to put the guts in it
Attachment:
001.JPG [ 148.73 KiB | Viewed 8808 times ]
Attachment:
002.JPG [ 148.77 KiB | Viewed 8808 times ]
Attachment:
003.JPG [ 149.33 KiB | Viewed 8808 times ]


Top
 Profile
Reply with quote
 Post subject: Re: Norms 75 luv build
PostPosted: Sat Oct 29, 2011 10:13 pm
Offline
LUVTruck.com Guru
User avatar

Joined: Mon Mar 28, 2011 8:31 pm
Posts: 221
Location: The Lone Star State
The truck looks great! I'm really diggin' the silver.

_________________
1978 Mikado *Weber 32/36*Offenhauser intake manifold*Pacesetter header*Custom exhaust*Pertronix Ignitor & Flamethrower 40,000v coil*


Top
 Profile
Reply with quote
 Post subject: Re: Norms 75 luv build
PostPosted: Mon Nov 07, 2011 2:15 am
Offline
Senior Member

Joined: Fri Oct 29, 2010 8:19 am
Posts: 80
Location: Shelton, WA
Kelly does awesome work! I have been over to his house and seen it first hand. I need to post some pics of my 76 convertible. Kelly is going to help me with a crossmember for putting in the 4x4 5 speed I'm doing.


Top
 Profile
Reply with quote
 Post subject: Re: Norms 75 luv build
PostPosted: Mon Nov 07, 2011 10:49 am
Offline
LUVTruck.com Guru
User avatar

Joined: Mon Dec 13, 2010 8:50 pm
Posts: 158
Location: cental point oregon
thank you for the comps. tony
Attachment:
tn.jpg [ 4.44 KiB | Viewed 8744 times ]


Top
 Profile
Reply with quote
 Post subject: Re: Norms 75 luv build
PostPosted: Sun Dec 11, 2011 9:11 pm
Offline
LUVTruck.com Guru
User avatar

Joined: Mon Dec 13, 2010 8:50 pm
Posts: 158
Location: cental point oregon

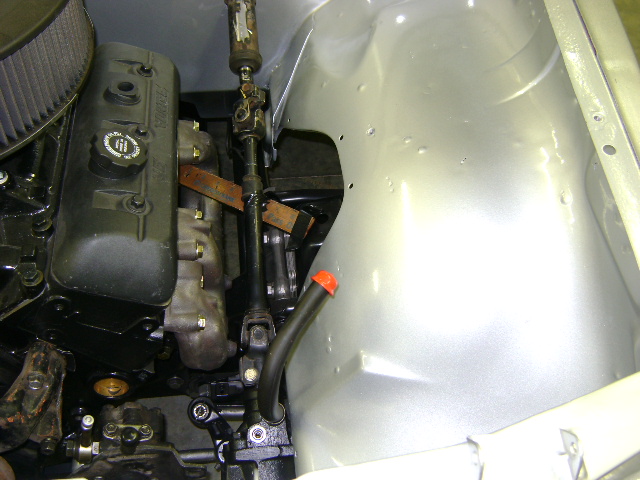

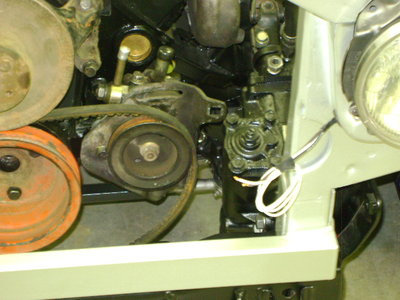

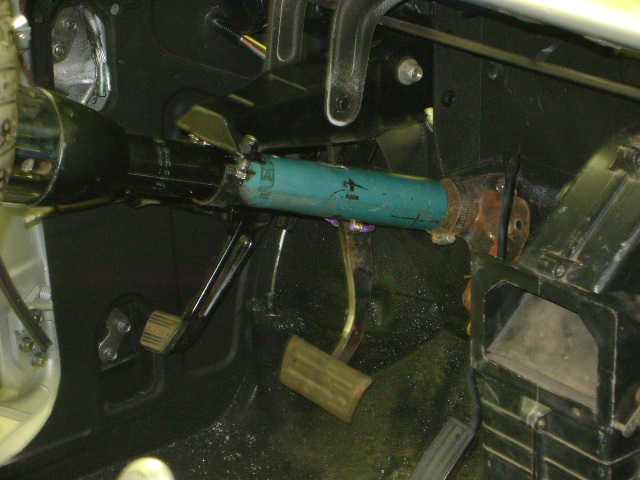

got the steering column made and the stafts to the box made
Attachment:
015.JPG [ 151.49 KiB | Viewed 8702 times ]
Attachment:
016.JPG [ 137.68 KiB | Viewed 8702 times ]
Attachment:
017.JPG [ 144.91 KiB | Viewed 8702 times ]


Top
 Profile
Reply with quote
 Post subject: Re: Norms 75 luv build
PostPosted: Sun Dec 11, 2011 9:33 pm
Offline
LUVTruck.com Guru
User avatar

Joined: Mon Dec 13, 2010 8:50 pm
Posts: 158
Location: cental point oregon

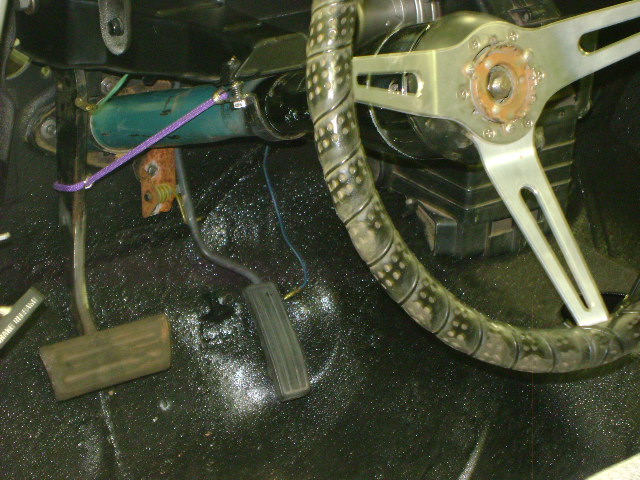

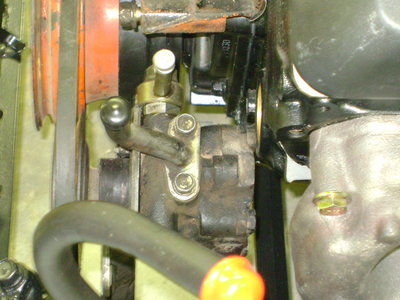

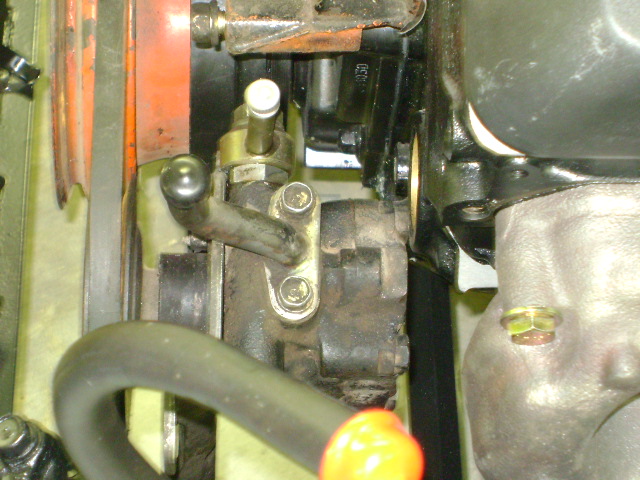

the steering column is a piece of work . from the 90 tropper power steering box , the shaft from the box to the column is a 2000 nisson frontier , the lower shaft is a 90 tropper and the lower housing is 75 luv . the upper haft of the shaft and housing is 67 chevy . when i take it apart for paint ill get some better pics . the pump is a 90 tropper .
Attachment:
021.JPG [ 147.12 KiB | Viewed 8701 times ]
Attachment:
022.JPG [ 148.94 KiB | Viewed 8701 times ]
i allso got the headlight , markers ,turn signal and the wirers ill need for the fan all in and hide , go ahead and find them .
Attachment:
020.JPG [ 150.61 KiB | Viewed 8701 times ]
thats what youll see when were all done no wirers to be seen under the hood.


Top
 Profile
Reply with quote
 Post subject: Re: Norms 75 luv build
PostPosted: Wed Dec 14, 2011 3:09 pm
Offline
Addicted to LUV
User avatar

Joined: Thu Jan 21, 2010 11:47 pm
Posts: 2944
Location: Vancouver, Washington
8O
that thing is looking great!
its the details like hiding the wiring and the customized steering setup that make these builds fun to follow. something a little different every time

_________________
Luvless :(
1980 Mikado-Sold.

1993 Lexus SC400 my Daily
2004 Yamaha WR250F my new love in life
2016 Toyota Camry my girls ride


Top
 Profile
Reply with quote
 Post subject: Re: Norms 75 luv build
PostPosted: Sun Dec 18, 2011 11:45 am
Offline
LUVTruck.com Guru
User avatar

Joined: Mon Dec 13, 2010 8:50 pm
Posts: 158
Location: cental point oregon

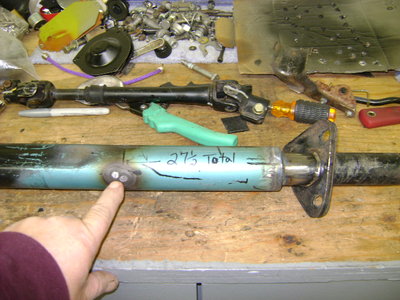

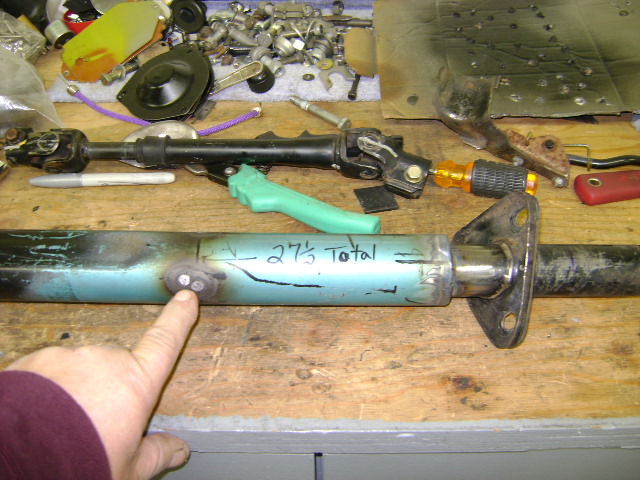

the steering column is welded
Attachment:
007 (2).JPG
007 (2).JPG [ 148.08 KiB | Viewed 8666 times ]

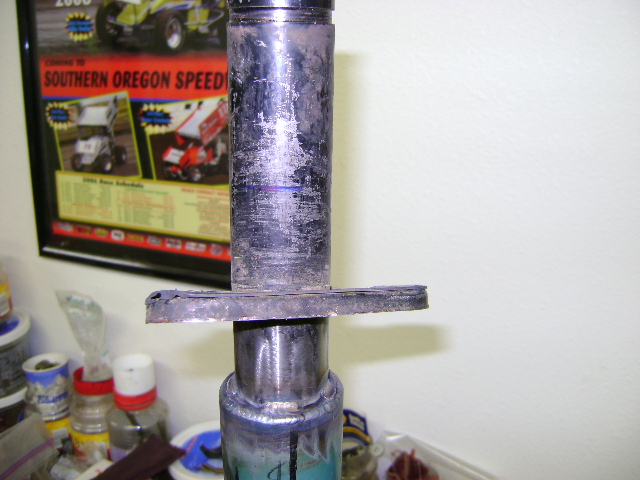

we made a washer to fit over the 75 tube and in side the 67 tube so it would keep a straight line through the tube
Attachment:
008 (2).JPG
008 (2).JPG [ 146.4 KiB | Viewed 8666 times ]

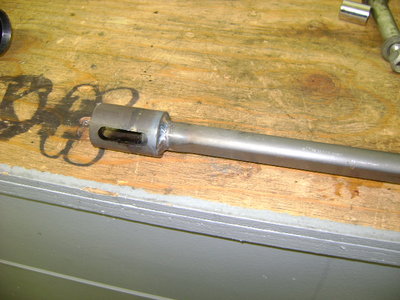

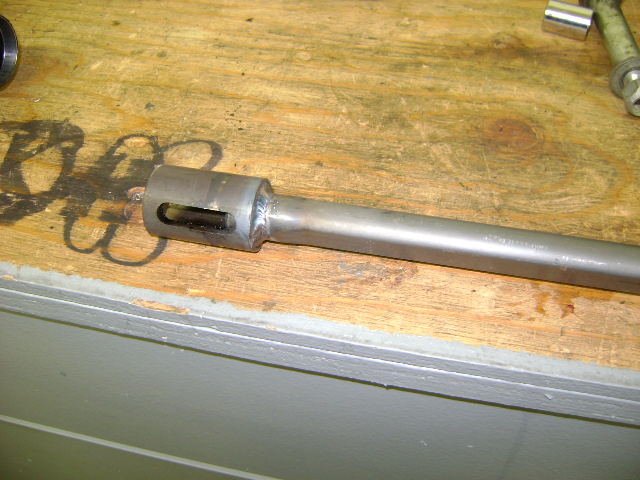

the coupler made it all possible
Attachment:
009 (2).JPG
009 (2).JPG [ 148.09 KiB | Viewed 8666 times ]


Top
 Profile
Reply with quote
 Post subject: Re: Norms 75 luv build
PostPosted: Sun Dec 18, 2011 6:56 pm
Offline
Senior Member
User avatar

Joined: Tue Sep 30, 2008 8:59 pm
Posts: 82
Location: New Smyrna Beach Florida
Very nice looking project you have going there!
You did a super job on that firewall and floor pan!
Waiting for updates!


Top
 Profile
Reply with quote
 Post subject: Re: Norms 75 luv build
PostPosted: Mon Dec 19, 2011 6:46 am
Offline
LSX LUV Owner
User avatar

Joined: Sun Aug 03, 2003 2:54 pm
Posts: 1261
Location: Dickinson, Texas
This thing is coming out awesome!

_________________


Top
 Profile
Reply with quote
 Post subject: Re: Norms 75 luv build
PostPosted: Tue Dec 20, 2011 10:09 am
Offline
LUVTruck.com Guru
User avatar

Joined: Mon Dec 13, 2010 8:50 pm
Posts: 158
Location: cental point oregon

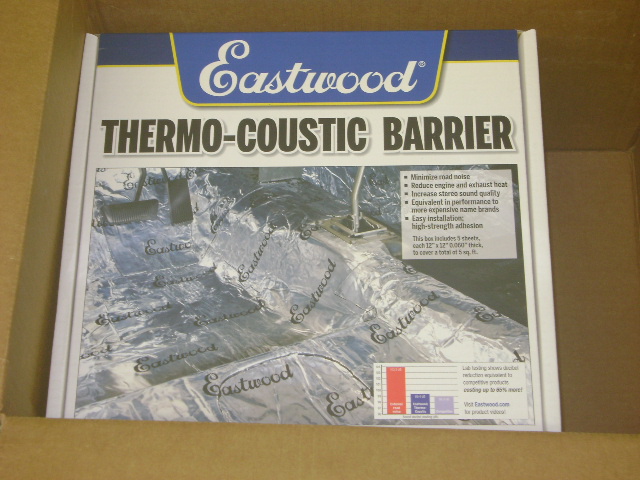

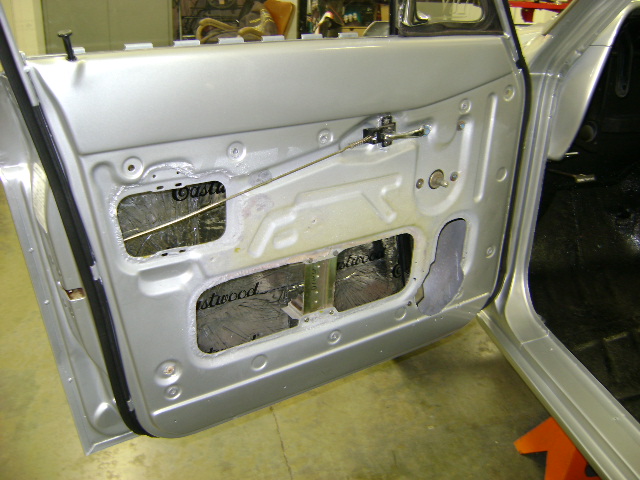

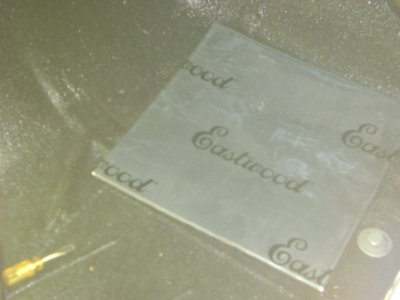

got a great deal on sound deadner EBAY 1999 and free shipping for 5 square feet . half the price of dynamat .
Attachment:
004 (3).JPG
004 (3).JPG [ 151.09 KiB | Viewed 8625 times ]
Attachment:
002 (2).JPG
002 (2).JPG [ 146.35 KiB | Viewed 8625 times ]
Attachment:
006 (3).JPG
006 (3).JPG [ 146.11 KiB | Viewed 8625 times ]


Top
 Profile
Reply with quote
 Post subject: Re: Norms 75 luv build
PostPosted: Wed Dec 28, 2011 10:26 am
Offline
LUVTruck.com Guru
User avatar

Joined: Mon Dec 13, 2010 8:50 pm
Posts: 158
Location: cental point oregon

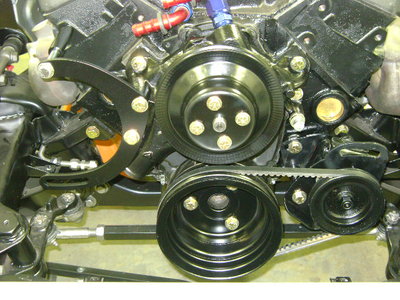

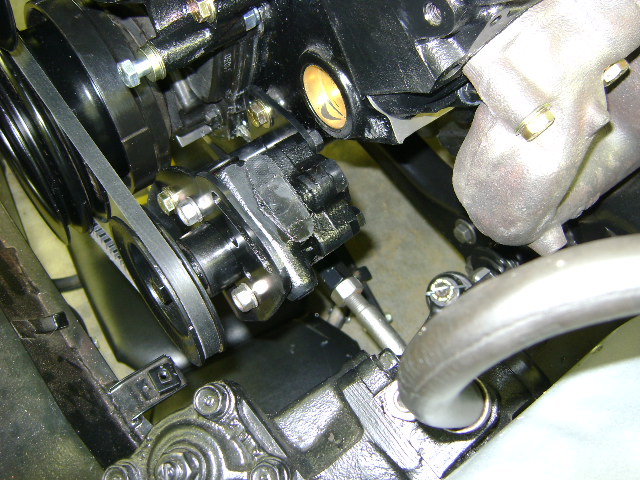

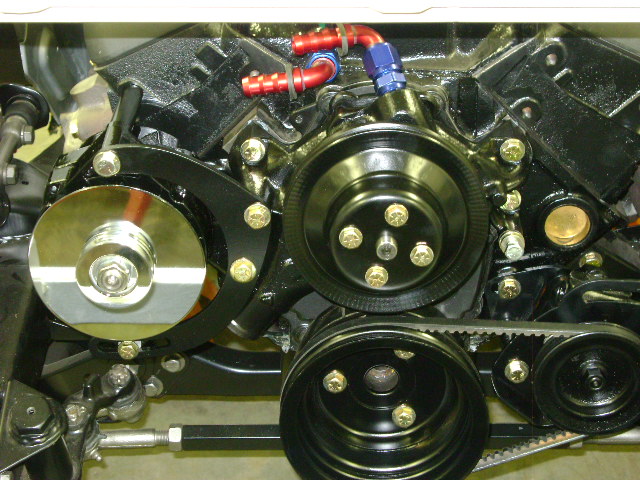

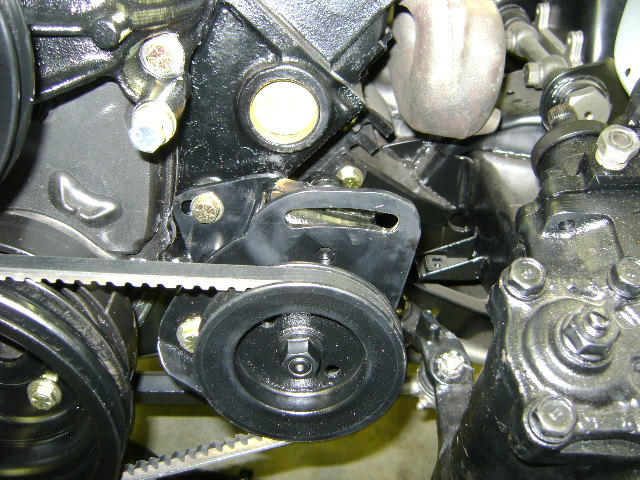

a littel more progress , pulleys and mounts for the alt . and power steering all done and powder coated
Attachment:
001.JPG [ 141.9 KiB | Viewed 8586 times ]
Attachment:
002.JPG [ 145.4 KiB | Viewed 8586 times ]
Attachment:
003.JPG [ 137.78 KiB | Viewed 8586 times ]


Top
 Profile
Reply with quote
 Post subject: Re: Norms 75 luv build
PostPosted: Thu Dec 29, 2011 8:03 pm
Offline
Junior Member

Joined: Mon Jan 03, 2011 5:33 pm
Posts: 12
kellytye wrote:
a littel more progress , pulleys and mounts for the alt . and power steering all done and powder coated
Attachment:
Attachment:
Attachment:


Is that the trooper pitman arm on the PS box? or was you able to install the stock LUV on the PS Box? Maybe I have the wrong PS box because my shaft on the PS Box is larger?........Please advise and explain thanks!


Top
 Profile
Reply with quote
 Post subject: Re: Norms 75 luv build
PostPosted: Thu Dec 29, 2011 10:35 pm
Offline
LUVTruck.com Guru
User avatar

Joined: Mon Dec 13, 2010 8:50 pm
Posts: 158
Location: cental point oregon

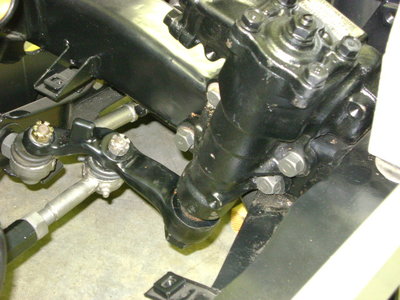

Hello sdeiter544 thanks for the intrest . the pittman arm hub that bolts on the tropper box stays , then cut the luv pittman arm . remember to take alot of measuerments and right them down . pay close attention to the up and down of the pittman arm so as not to hit the frame as you turn . the best way is to have a 2nd luv pttman arm so you can get the up and and side to side correct . the pittman arm is made of cast steel not cast iron so welding is easy . BUT I WOULD HAVE A PRO TIG WELD IT . I hope this helps if not ask again and ill try to come up with the right answer .
Attachment:
004.JPG [ 145.29 KiB | Viewed 8572 times ]


Top
 Profile
Reply with quote
 Post subject: Re: Norms 75 luv build
PostPosted: Fri Dec 30, 2011 1:52 am
Offline
Senior Member
User avatar

Joined: Thu Jan 15, 2009 3:02 pm
Posts: 77
whats the name of that color u use? its a nice silver!! keep up the great work!!

_________________
SALINASRACING.COM


Top
 Profile
Reply with quote
 Post subject: Re: Norms 75 luv build
PostPosted: Fri Dec 30, 2011 2:29 am
Offline
LUVTruck.com Guru
User avatar

Joined: Mon Dec 13, 2010 8:50 pm
Posts: 158
Location: cental point oregon
seabring silver


Top
 Profile
Reply with quote
 Post subject: Re: Norms 75 luv build
PostPosted: Sun Jan 01, 2012 8:04 pm
Offline
LUVTruck.com Guru
User avatar

Joined: Mon Dec 13, 2010 8:50 pm
Posts: 158
Location: cental point oregon

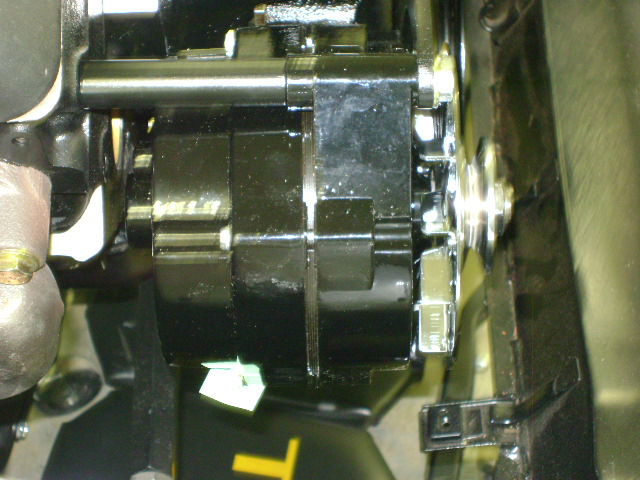

got a little done on the luv today . got alt. mounted and wired .
Attachment:
001 (3).JPG
001 (3).JPG [ 138.4 KiB | Viewed 8551 times ]
Attachment:
002 (3).JPG
002 (3).JPG [ 147.48 KiB | Viewed 8551 times ]
